Cup Lock System
CupLock Standard / Vertical
The Cuplock Standard / Vertical are manufactured from 48 mm OD MS Round Pipe, provided in various sizes with Cup Joints welded at 500 mm Intervals. The top cups are made from Malleable casting & forged to endure rough site handling and welded bottom cups are Pressed from High Quality Steel.
CupLock Ledger / Horizontal

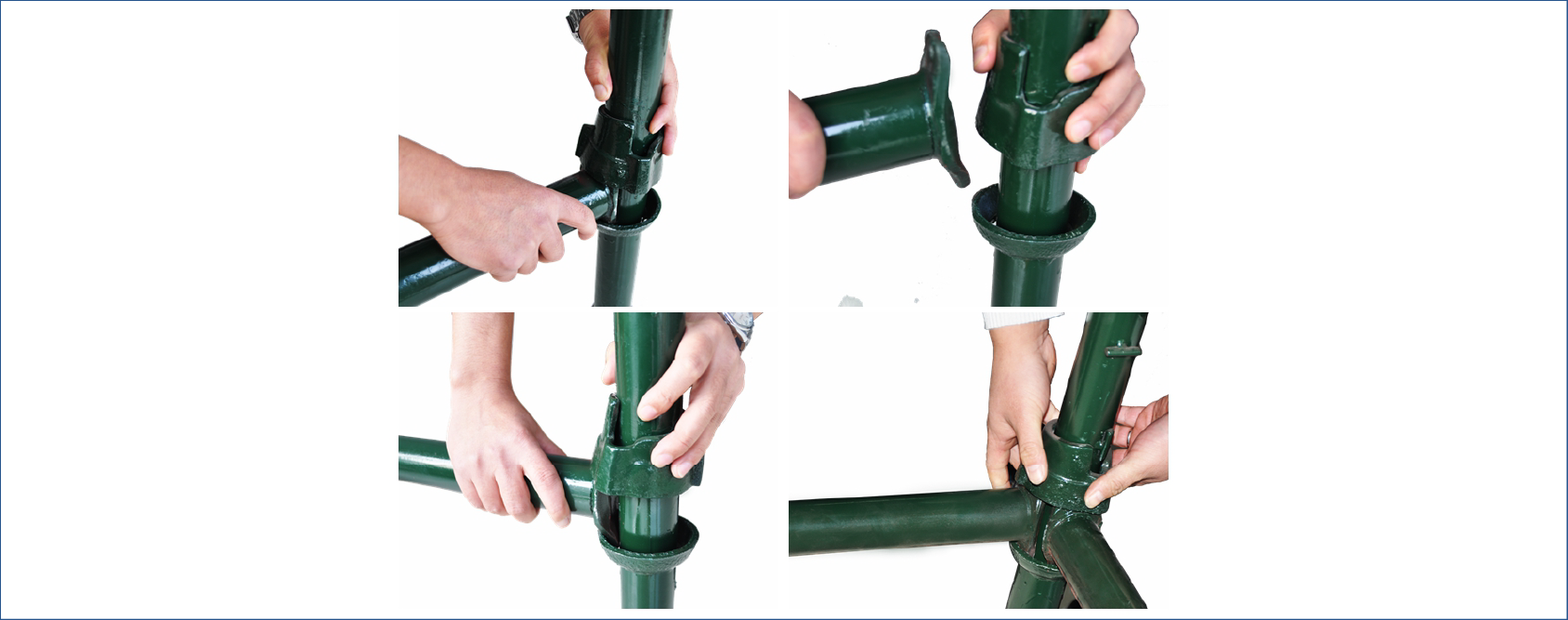

The Cuplock Ledger is used to make rigid bond to endure uneven site handling. This Cuplock ledger is comprised of forged blade at the both end which fits between Top cup and Bottom cup of vertical. Ms round pipes is used of 48.00 mm OD and 3 mm Thickness. Minimum projection of blades avoids damages in handling and uniform dimension makes the cup joints rigid.
